Folding container accommodation can be adjusted and customized according to actual needs. Different modules can be combined according to needs to meet different space requirements, such as equipped with bedrooms, bathrooms, kitchens and rest areas.
Item NO.:
GZFCH-02Payment:
T/TProduct Origin:
ChinaColor:
CustomizedMin order:
5Lead Time:
7-15Affordable Prefab House Folding Container Acommodation For Camp

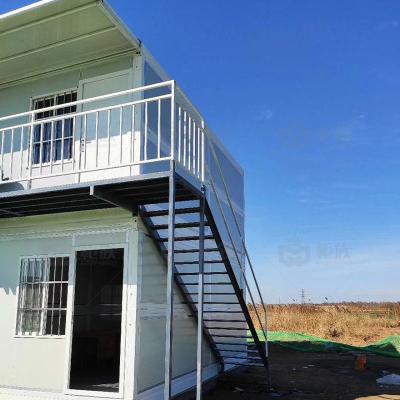

Folding container camp accommodation is a temporary accommodation facility built using foldable containers. It is suitable for situations such as field camping, military bases, emergency rescue, mining sites and other environments that need to quickly build accommodation.
Product Specification
|
Configuration - Standard Folding Container |
||
|
Specification |
external dimension (mm) |
5800*2480*2560 |
|
Internal dimension (mm) |
5640*2320*2420 |
|
|
Package dimension (mm) |
5800*2480*410 |
|
|
Weight |
≈1300KG |
|
|
Index |
Structural Design Service Life |
10 years |
|
ground live load |
200kg/㎡ |
|
|
roof live load |
100kg/㎡ |
|
|
wind load |
Grade 8 |
|
|
Seismic Fortification Intensity |
Grade 10 |
|
|
Main structure |
Top frame |
Main beam Q235B rectangular square tube |
|
Secondary beam Q235B rectangular square tube |
||
|
Secondary beam Q235B rectangular square tube |
||
|
Bottom frame |
Main beam Q235B rectangular square tube |
|
|
Main beam Q235B rectangular square tube |
||
|
Secondary beam Q235B rectangular square tube |
||
|
side |
Main beam Q235B galvanized P-type pipe |
|
|
front and back |
Main beam Q235B galvanized P-type pipe |
|
|
corner |
Q235B thickness 8mm |
|
|
folding hinge |
Galvanized hinge, high strength |
|
|
Roof |
Integral frame protective coating |
Electrostatic spray/straight white plastic powder |
|
external roof |
Galvanized sheet |
|
|
interior ceiling |
Color steel veneer V831，0.37mm |
|
|
Wall panel |
Insulation glass wool |
glass wool roll 50mm |
|
side wall |
0.3/0.3 75mm Thick glass wool composite board |
|
|
Front and rear wall panels |
0.3/0.3 75mm Thick glass wool composite board |
|
|
Floor |
cement mix floor 15mm |
|
|
Electrical System |
Electrical wiring is installed in strict accordance with moisture-proof specifications, and all electrical products meet CE certification. Connect the circuit according to the circuit engineering specification, indoor: 4² national standard annealed copper wire, 1 32A circuit breaker, 1 three-hole air-conditioning socket, 2.5² socket incoming line, 1 five-hole single-open socket, 1 five-hole socket, 1 LED light |
|
|
door |
High quality anti-theft door (warm white) size: 860mm*1990mm |
|
|
window |
920*920 single glass sliding window plastic steel window with guardrail screen window, glass thickness 4mm |
|
Interior design
product installation
optional type
Foldable house is widely applicated for office, accommodation, shop, ect. It is a prefabricated modular building optimize temporary modular space.
Detachable container house is a modular building product based on a steel frame and lightweight wall panel structure system. The product consists of a top frame, a bottom frame, a column and 18 interchangeable wall panels, no electric welding, no welding scars, and full bolt assembly. Prefab modular building is now the latest container house. we have two designs for low cost contain office, the first one is empty design,it can be Mobile detachable dormitory building, Portable prefab container dormitory, Luxury detachable container house. another design is two bedrooms with one bathroom,the sanitary ware has been installed inside the house when you open, also the partition wall.we will send you the video for fixing,anyone can understand.
Guizu Group, Complete categories of products apply for multiple residences, commercial, and public scenarios such as offices, accommodations, dormitory, stores, Barbershops, toilets and bathrooms, etc. Foldable container house is the newest container house now,it doesn't need any tools when you install also no more than 5 mins for installation.we have two designs for mobile container house, the first one is empty design,it can be 20ft folding container, prefab 40ft container house or homes.another design is two bedrooms with one bathroom,the sanitary ware has been installed inside the house when you open, also the partition wall.we will send you the video for fixing,anyone can understand. If you are scrupulous you will find that we there are some supports in the bottle of the container house, it is the important thing to keep the balance in the ground, so means you can adjust the balance if your land is not a flat base.
Guizu Group, Complete categories of products apply for multiple residences, commercial, and public scenarios such as offices, accommodations, dormitory, stores, Barbershops, toilets and bathrooms, etc. Foldable container house is the newest container house now,it doesn't need any tools when you install also no more than 5 mins for installation.we have two designs for 20ft container Home, the first one is empty design,it can be tiny container home, mobile prefabricated home or container holiday home. another design is two bedrooms with one bathroom,the sanitary ware has been installed inside the house when you open, also the partition wall.we will send you the video for fixing,anyone can understand. If you are scrupulous you will find that we there are some supports in the bottle of the container house, it is the important thing to keep the balance in the ground, so means you can adjust the balance if your land is not a flat base.
Guizu Group, Complete categories of products apply for multiple residences, commercial, and public scenarios such as offices, accommodations, dormitory, stores, Barbershops, toilets and bathrooms, etc. Foldable container house is the newest container house now,it doesn't need any tools when you install also no more than 5 mins for installation.we have two designs for prefab modular Foldable container house , the first one is empty design,it can be portable living house, mobile prefabricated home or luxury fabricated living house. another design is two bedrooms with one bathroom,the sanitary ware has been installed inside the house when you open, also the partition wall.we will send you the video for fixing,anyone can understand. If you are scrupulous you will find that we there are some supports in the bottle of the container house, it is the important thing to keep the balance in the ground, so means you can adjust the balance if your land is not a flat base.
Guizu Group, Complete categories of products apply for multiple residences, commercial, and public scenarios such as offices, accommodations, dormitory, stores, Barbershops, toilets and bathrooms, etc. Foldable container house is the newest container house now,it doesn't need any tools when you install also no more than 5 mins for installation.we have two designs for Fast installation container house, the first one is empty design,it can be mobile prefabricated home, tiny container home or 20ft foldable container house. another design is two bedrooms with one bathroom,the sanitary ware has been installed inside the house when you open, also the partition wall.we will send you the video for fixing,anyone can understand. If you are scrupulous you will find that we there are some supports in the bottle of the container house, it is the important thing to keep the balance in the ground, so means you can adjust the balance if your land is not a flat base.
Guizu Group, Complete categories of products apply for multiple residences, commercial, and public scenarios such as offices, accommodations, dormitory, stores, Barbershops, toilets and bathrooms, etc. Foldable container house is the newest container house now,it doesn't need any tools when you install also no more than 5 mins for installation.we have two designs for Two story container homes, the first one is empty design,it can be portable prefab container office, mobile prefabricated home or Luxury prefab homes. another design is two bedrooms with one bathroom,the sanitary ware has been installed inside the house when you open, also the partition wall.we will send you the video for fixing,anyone can understand. If you are scrupulous you will find that we there are some supports in the bottle of the container house, it is the important thing to keep the balance in the ground, so means you can adjust the balance if your land is not a flat base.
Guizu Group, Complete categories of products apply for multiple residences, commercial, and public scenarios such as offices, accommodations, dormitory, stores, Barbershops, toilets and bathrooms, etc. Foldable container house is the newest container house now,it doesn't need any tools when you install also no more than 5 mins for installation.we have two designs for Foldable Homes, the first one is empty design,it can be mobile container Building, portable prefab living house or luxury prefab living container. another design is two bedrooms with one bathroom,the sanitary ware has been installed inside the house when you open, also the partition wall.we will send you the video for fixing,anyone can understand. If you are scrupulous you will find that we there are some supports in the bottle of the container house, it is the important thing to keep the balance in the ground, so means you can adjust the balance if your land is not a flat base.
