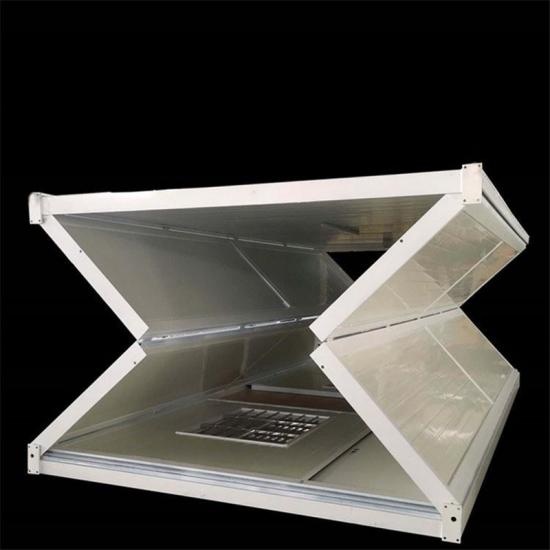

Foldable container house is the newest container house now,it doesn't need any tools when you install also no more than 5 mins for installation.we have two designs for Folding 20FT homes, the first one is empty design,it can be Prefab Modular House, Portable container living room or Portable foldable house. another design is two bedrooms with one bathroom,the sanitary ware has been installed inside the house when you open, also the partition wall.we will send you the video for fixing,anyone can understand.
If you are scrupulous you will find that we there are some supports in the bottle of the container house, it is the important thing to keep the balance in the ground, so means you can adjust the balance if your land is not a flat base.
Payment:
T/TProduct Origin:
ChinaColor:
CustomizedShipping Port:
GuangzhouMin order:
5Product weight:
1.2t-3.5tLead Time:
30 Working DaysFully Furnished Portable Homes 20FT Living Room Folding Container House
Product Description
The overall frame profile of the foldable container house is formed by high-frequency welding equipment at one time. All splicing parts are designed with up and down snapping, which has excellent sealing performance and leak-proofness. The profile base is thickened with 2.5 galvanized material, the base profile is 27 cm, the column width is 16 cm, the top beam profile is 19 cm wide, the frame contains the base bars, and the folded height is 40 cm.
The function of the container room space can be customized according to needs, and can also be reused, and the disassembly and transportation are also very fast.
Item |
Specification |
Size |
5800*2440*2620mm |
Steel Structure |
Square tube and bending steel plate |
Wall Panel |
50mm EPS sandwich panel /rock wool sandwich panel ,0.326/0.376/0.426/0.476mm steel sheet |
Wall Color |
White color and optional colors |
Roof |
50mm EPS sandwich panel /rock wool sandwich panel ,0.326/0.376/0.426/0.476mm steel sheet |
Door |
50mm EPS sandwich panel /rock wool sandwich panel ,0.326/0.376/0.426/0.476mm steel sheet with lock /optional doors |
Window |
Aluminum sliding door, PVC sliding door with security bar |
Floor |
MGO board /optional floor |
Decoration Wall |
Optional: PVC cladding ,WPC cladding |
Electricity |
Optional standard |
Install Time |
2 Workers 10 mins |
Wind Resistance |
Wind speed≤120 km/h |
Earthquake Resistance |
Grade 8 |
Snow Load Capacity Of Roofing |
0.6kn/m2 |
Live Load Capacity Of Roofing |
0.6kn/m2 |
Wall Permitted Loading |
0.6kn/m2 |
Heat Conductivity Coefficient |
0.35kcal/m2hc |
Delivery Time |
About 15-20 working days |
Container Loading |
4 sets/20GP,8 sets/40HQ |
Application field
Installation process
Product core advantage
1.All the steel structures are galvanized & bake-painted.
2.Workers can install 1 unit in only 5 minutes.
3.When is folded,the height is only 420 mm.40 HQ can load 10 units. It can save transportation, installation and storage cost.
4.Fire proof,water proof,corrosion-resistant,sound-insulation.
5.Environment protection :no construction waste, materials can be recycled.
FAQ
1.Q: Could you design a new and unique prefab house for me?
A: Of course! We have the most professional design team to integrate your demand to provide you with one-stop customization service.
2. Q: What do I need to provide to build a prefab house?
A: It would be better if you could provide a sketch. If not, you just need to tell us your demands, such as area, house use, etc., and we can make the corresponding design for you.
3. Q: How to get the quotation of the project?
A: If you can provide design drawings and required materials, we can quote according to your needs. Besides, If you don't have a drawing, we can also offer you a quotation after telling us the purpose and demand of your prefabricated house.
4. Q: How to control the cost of building a prefab house?
A: After confirming the design plan, you can choose the corresponding building materials according to your own need since each material has its own price.
5. Q: what are the advantages of prefab house?
A: It is prefabricated in the factory, which does not take up construction time on the site; it can be modularly assembled, which is convenient for transportation and can be moved to achieve recycled use.
6. Q: What are the uses of this type of house?
A: It has multiple applications and can be used as hotels, offices, shops, residences, etc.
7. Q: How long does it take to build a prefab house?
A: It depends on the size of the house and complexity of the house. Usually, a 50 square meters' house takes 5 workers to complete in 1-3 days.
8. Q: What is the delivery time?
A: The delivery time depends on the quantity and the complexity of the house. Usually, the delivery time is 10-20 days after receiving the deposit.
9. Q: How to install?
A: We will provide you with installation instructions and videos, or send a technician to assist you if necessary. However, you are responsible for their wages, visa fees, airfare and accommodation.
10. Q: How do you guarantee the quality of the products?
A: We always put quality first. Every product produced in our factory must pass the strict quality test before it is delivered to the customer.
11. Q: What's your annual supply?
A: Annual Production: About 100000 square meters.
12. Q: What is your MOQ?
A:One set.
13. Q:What is your payment term?
A: 30% deposit by T/T in advance, 70% balance payment before shipment.
14.Q:What trade terms do you accept?
-A:EXW, FOB, CIF.
